LINEA MIXED GRILLE

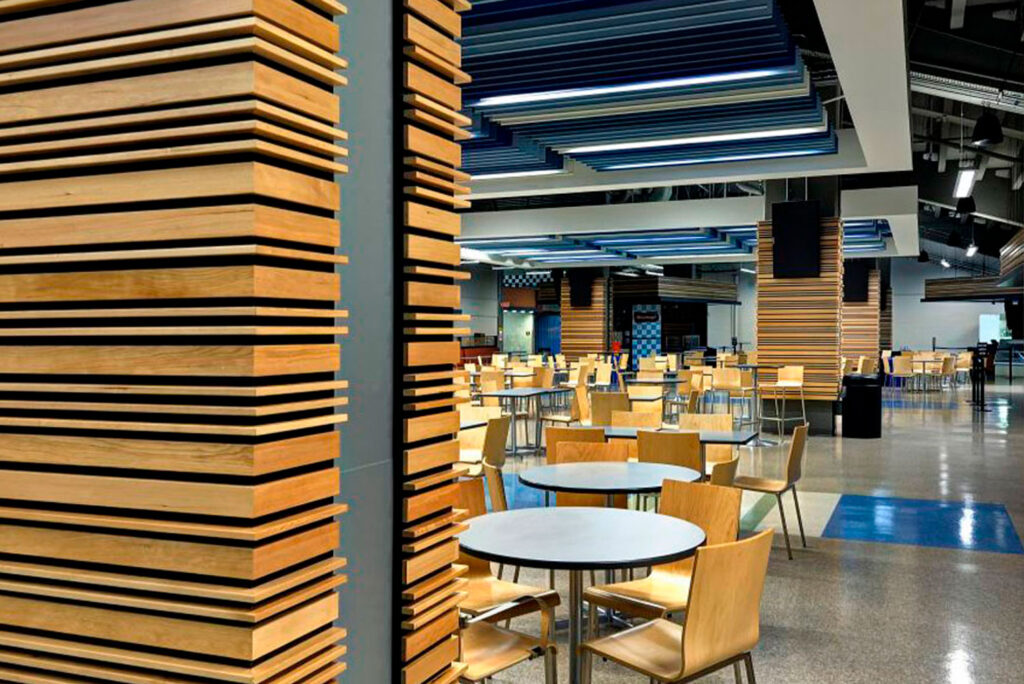

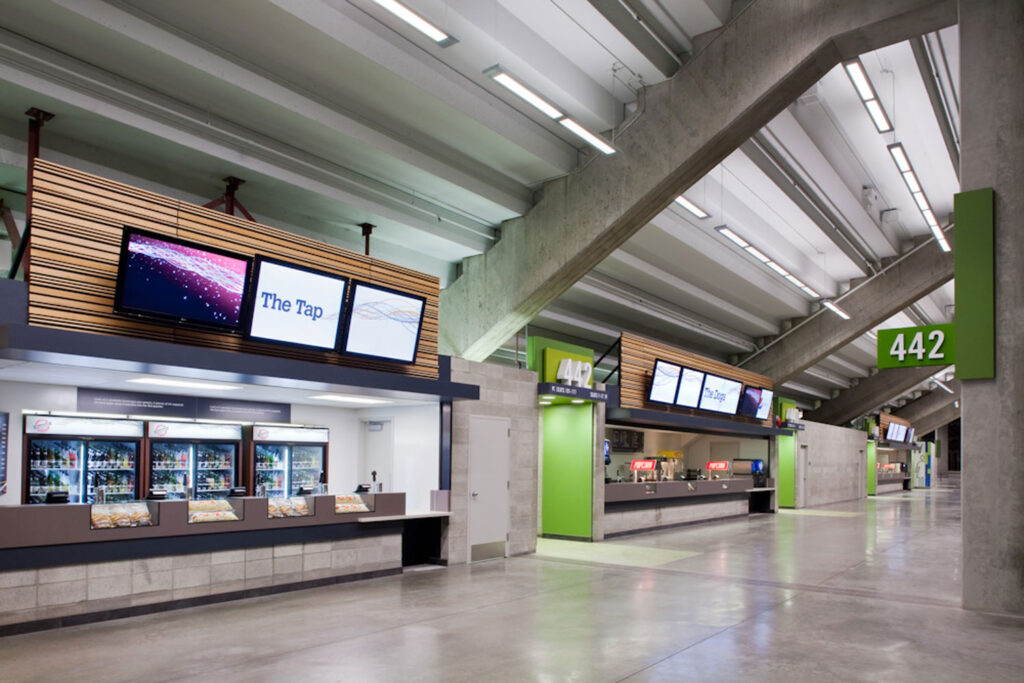

LINEA Mixed Grille is a panelized linear wood slat / wood blade system designed for interior and exterior wall and ceiling installations. LINEA Mixed Grille is composed of wood slats in both Grille and Plank orientation which creates a textured appearance. LINEA Mixed Grille is available in a wide variety of solid wood options, comes in standard or custom sizes, in standard or custom spacing configurations and in standard, custom or simulated finishes. When combined with acoustical insulation, LINEA Mixed Grille can achieve high acoustic performance

SPECIFICATION–example

Type:  LINEA Mixed Grille
Wood Species: Download Chart
Panel Size: 20″ x 95″
Blade Size: Grille-5/8″ x 1-3/8″ (16 x 35)
Plank-5/8″ x 2-1/4″ (16 x 57)
Spacing: 10 Members/ 20
Cross Members: 1/2″ x 11/4
Finishes:  Natural Clear, Custom Stained or Tinted Clear Finishes in Matte, Satin or Semi–Gloss Sheen
Fabric Backer: Option Available
Fire Rating : Class A per ASTM E–84 (USA) and CAN/ULC S102 (Canada)

PHYSICAL DATA

ACOUSTICS: LINEA  Mixed Grille panels without additional acoustic insulation will act as a sound diffuser and should be considered acoustically transparent. When the LINEA MixedGrille is paired with acoustical insulation or duct liner behind, the panels can achieve high sound absorption.
FIRE RATING: Solid Wood FX Lumberguard or FX Lumberguard XT chemical fire retardants are factory applied to all LINEA Mixed Grille wood slats prior to further finishing to achieve a Class A Fire Rating when tested to ASTM E-84 (USA) and CAN/ULC S102 (Canada). When site cutting is required, FX
Lumberguard can be re–applied to the cut locations and re–sealed to bring the panel back into conformance. Other topically applied chemical fire  retardants or intumescent finishes may be used in lieu of FX Lumberguard to achieve Class A Fire Rating. In some cases, the specifying consultant
may need to file an Alternate Solution with local authorities for approval. LINEA suggests consulting with local building code consultants during the specifying stage to avoid any potential issues related to Fire Rating.
SEISMIC: LINEA Mixed Grille panels are engineered for applications in all seismic areas when installed per LINEA installation instructions.
SITE CONDITIONS: Wood products are hygroscopic in nature and must be stored, installed & maintained in a controlled building environment. Temperature range should be maintained between 60° – 90° F (15° – 32°C). Relative Humidity range should be kept within a minimum 25% – max. 55% (not to exceed 20% RH from peaks to valleys). Failure to maintain site conditions will void the LINEA
