Linea Tenor Panel

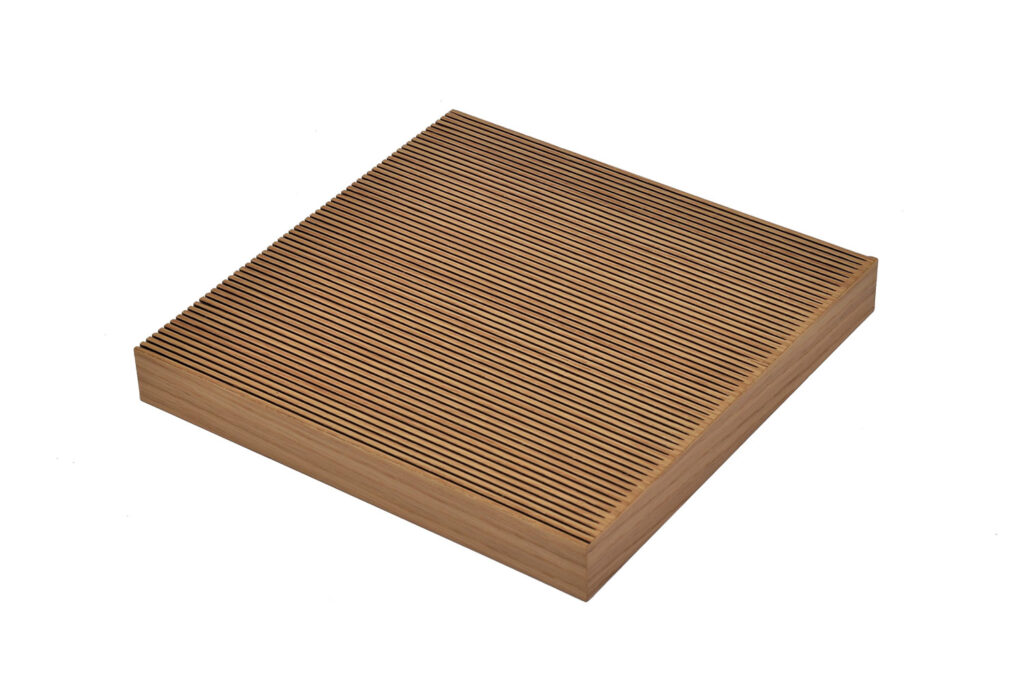

Linea Tenor Panel is a panelized linear ceiling and wall system designed to showcase the face veneer while the internal body is engineered to accept, funnel and diffuse sound energy. Assembled with a unique V–Kerf machined pattern the solid internal perimeter houses an acoustic core providing excellent sound attenuation.

Information & Options

Core:

Solid wood internal frame. Rigid acoustical core

Panel Size:

Standard size is nominal 24″ x 24″ to work with standard T-bar systems.

Acoustic Core Thickness:

19mm ( 3/4″)

Back Profile:

Perforated

Edge Profile:

Square – Matching Veneer

Fire Rating:

Class A per CAN/ULC-S102 & ASTM E-84

Fabric Backer:

Black SoundTex®

Installation Methods

LAY IN

Lay-In tiles use sit atop existing t-bar much like a standard gypsum ceiling tile.

LOCK CLIP

Linea Lock Clip tiles hang below existing t-bar using a specialized clip providing a floating look. The Linea Lock system provides a typical 3/8” reveal, partially concealing the t-bar it is suspended from.

TEGULAR EDGE WITH CLIP

Tegular Edge with Clip tiles hang inset of existing t-bar using a specialized clip. The Tegular Edge with Clip system provides a reveal the same width as the standard t-bar; typically 15/16“.

Performance Info

Acoustics:

Linea Tenor Panels are manufactured with an Acoustic Ridged Insulation allowing sound to internally diffuse. Tenor panels are acoustically absorptive.

Fire Rating:

Class A Fire Rated when tested to
ASTM E84 or CAN/ULC S102 (FS ≤ 25; SD ≤50)

Seismic:

Linea Tenor Panels comply with seismic code compliance through direct screw attachment to the heavy–duty grid. Local code requirements should be consulted in order to determine additional requirements

Acclimatization:

Linea Tenor panels should be on site for a minimum of 48 hours prior to installation into a building. Panels require 72 hours acclimatization prior to installation. Relative humidity between 25% and 55% and a temperature between 50°F (10°C) and 86°F (30°C) both prior and after installation.
